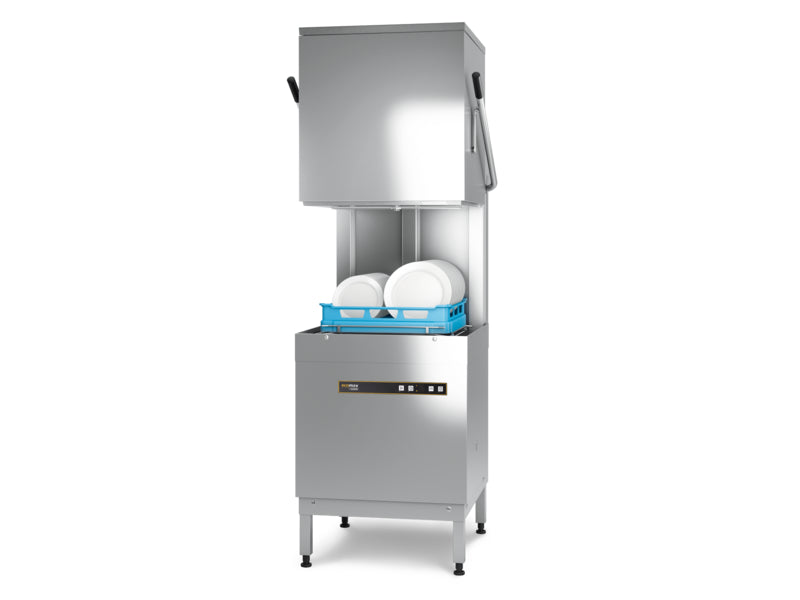

Ecomax Single Phase Hood Type Dish & Glasswasher - 604- Hobart HB-ECOMAX604
Translation missing: en.product.general.sale_price$7,199.97AUD
You save
$5,450.03 (43%) OFF
$5,450.03 (43%) OFF
Translation missing: en.product.general.regular_price
RRP $12,650.00
Description
- Hood-type dishwasher for straight through or a corner operation
- Nominal capacity up to 48 racks/h or 810 plates/h or 2,160 glasses/h
- 3 automatic cycles: 75 / 150 & 180 seconds
- Ready to install - completely equiped: fill / drain hose, power cord (240V, 15 amp), detergent dispenser, rinse aid dispenser, drain pump and back-flow preventer
- tank, frame, rinse arm and panels are stainless steel 1.4301
- 1 plate rack P-18-12
- 1 universal rack B-00-07
- 1 plastic cutlery box
Variants
Order number | Description |
---|---|
ECOMAX604 | Ecomax hood machine - 240 / 50 / 1 - 15 amp |
- EASY-TO-USE: electronic controls with 3 cycles - 75, 150 & 180 seconds
- Digital temperature gauges
- Suitable for all dish & glass washing applications. Useable chamber height of 440mm. Able to wash 1/1 GN pans when using optional open ended tray racks
- Low 2.3 litres per cycle rinse volume dish / glasswasher
- Fully enclosed 4 sided hood design - avoiding loss of energy / steam
- Optimum hygienic - deep drawn tank with coved corners (no welds) and SELF-CLEANING CYCLE
- Polypropylene wash and stainless steel rinse arm with patented WIDE ANGLE FAN nozzle to maximise wash & rinse performance
- Wash pump inlet strainer to ensure machine reliability
- Includes chemical dispensers, fill hose, power lead / plug & pump-out drain for quick & easy installation
- Includes 1 x plate rack & 1 x cutlery holder
- Watermark approved to WMTS-101:2018, Cert. WMKT21944
- NOT SUITABLE FOR USE WITH REVERSE OSMOSIS SYSTEMS
- MADE IN GERMANY
Technical data
Wash Tank Temperature | 55 - 65°C |
Rinse Water Temperature | Minimum 82°C |
Low temp cut-out (thermostop) activated | Yes |
Cycle Times* | 75 / 150 / 180 seconds |
Water Consumption | 2.3 litres |
Tank Capacity | 21 litres |
Tank Heating | 2.5 kW |
Power Supply | 240/50/1-15A |
Booster loading - Standard | 2.6 kW |
Total loading - Standard | 3.2 kW |
Pump capacity | 0.4 kW |
Loading Height | 440 mm |
Bench to bench - internal dimension | 628 mm |
Product-Dimensions: 713(W) x 1480(H) x 742(D)mm
